RIB Bed on Rails – GlideMotion

£3,470.00£3,530.00
SKU: P-RIB-GM
Share on:
mastercard
visa
paypal
gpay
applepay
Product Description

Introducing the RIB bed on rails – GlideMotion Rail System

The RIB bed on rails – GlideMotion Rail System for the 112cm, 120xl or 150cm RIB Altair Seat. Designed and developed in house, certificated M1 pull tested in conjunction with the RIB Altair 112cm / 150cm seat design.

Our Glidemotion rails and housing allow the RIB Altair seat to smoothly slide from the rear to the front of the van with 6 lock off points along the way. This versatile layout allows for the passengers to travel closer to front, much like in a Kombivan arrangement with a large boot space behind the seat.

Our RIB seat on rails allows the perfect campervan layout by being able to position the seat at the very rear of the van when required.

*Lead times:

  • 112cm SWB – 3 weeks
  • 112cm LWB – 3 weeks
  • 120xl SWB – Currently unavailable – Returning in 2025
  • 120xl LWB – Currently unavailable – Returning in 2025
  • 150cm SWB – Currently unavailable – Returning in 2025
  • 150cm LWB – Currently unavailable – Returning in 2025

**Please be aware, our RIB bed on rail systems are not backward compatible and is only sold as a full kit including the seat for the following vehicles;

  • VW T5/T6
  • Transit Custom – If fitted 6-8cm off the passenger wall
  • VW T4
  • Sprinter / Crafter – Front only

RIB Bed on rails – Details:

Advantages of having a movable seat position;

  • Front of van seat positioning give passengers a more comfortable riding position.
  • Children travelling in the back are closer to hand, like a Kombi van design.
  • Large loading space behind the seat can accommodate bikes, luggage, tools and equipment.
  • A centrally positioned table combined with front swivel seats allows 5 people to sit around a single table.
  • You can push the seat to the back of the van to maximize space as a campervan.
  • A bed can be made up either to the front of the van or to the rear of the van, allowing more flexible storage options.

The design and development of the RIB Altair bed seat on sliding rails has taken some time, we wanted to keep the rail depth as shallow as possible (the rails only have a depth of 25mm). We also wanted the seat to be removable for those times that the full load capacity of the van is required.

Below, we list some of the key specifications of the RIB bed on rails – GlideMotion Rail System.

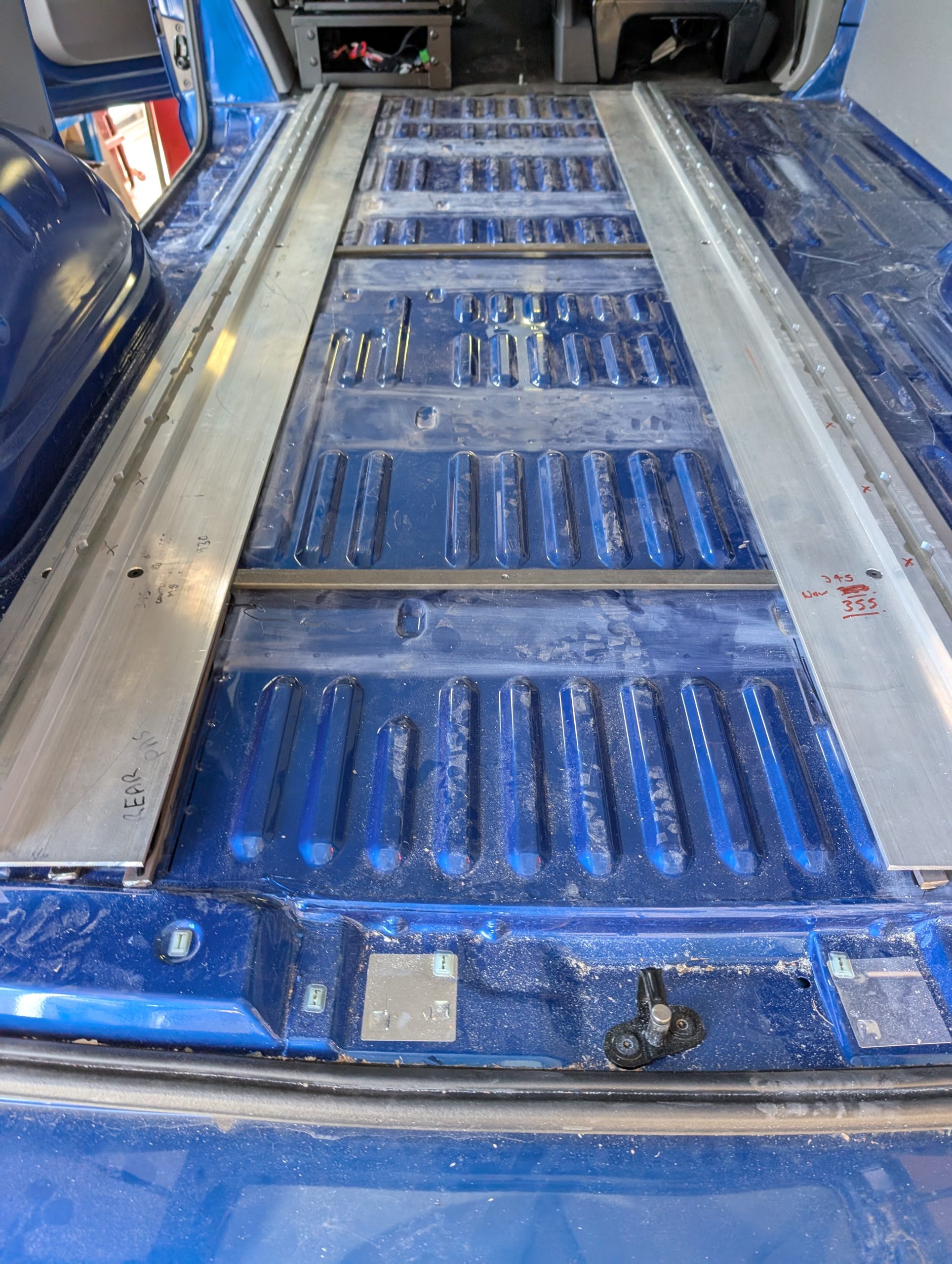

  • Slimline rail depth of 25mm, this means minimum increase in floor height.
  • 2250mm (SWB), 2450mm (LWB) rail length, Up to 1350mm (SWB) of seat travel, 1700mm (LWB)
  • 6 lock off positions (SWB), 6 positions (LWB)
  • Bearing runner design for smooth glidemotion of seat.
  • Easy selection of seat position.
  • Complete lock down of seat with no rattling.
  • Stylish anodised aluminium single piece rail.
  • You can remove the seat from the van when you need an empty van.
  • Optional under seat tray providing large volume storage area. Flush twin door front.

The optional under seat storage unit provides neat secure storage without compromising the use of the seat.

The fitted price will include the RIB seat on rails – GlideMotion Rail System, RIB 112cm, 120xl or 150cm Altair seat with integral headrests, new flooring, floor insulation, new side step and rear threshold where required.

  • Customised RIB Altair 112cm, 120xl or 150cm (Range of fabric, vinyl and leather options available)
  • Integral headrests
  • Shoulder belts
  • Full length aluminium rails with bearing runner housing
  • 6 x lock off positions
  • Seat and runner housing are removable from rails allowing removal of seat when required.
  • 2250mm SWB Glide motion rails or 2450mm for LWB
  • Installation of RIB Altair seat, Glidemotion rails, runner housing with under floor plating.
  • Installation of 18mm one piece Plywood floor with under floor insulation. New side step and rear threshold. Choice of non slip Altro floor coverings.

Get your RIB bed on rails! [enquiries@campervanseating.uk]
